Breezer Radar X

Breezer Radar X
  • Color: Satin Black
Color: Satin Black
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please call or email to see if this item is available as a special order.


One bike, endless riding options.

Let Radar set your bearings toward determined velocities of distant desire. Constructed using a double-butted chromoly frame and fork that features rack mounts, five (yes, five) water bottle mounts, disc brakes, and clearance for 29 x 2.1" off-road tires. The Radar is the perfect choice for urban adventures, full-blown bikepacking, or anything in between. Wide-range gearing will get you up the steepest climbs and back down again even when fully loaded with gear. The Radar is the ultimate Road and Dirt Adventure Rig.

- Breezer compact geometry
- Breezer butted chromoly frame with BSA threaded bottom bracket, Breeze-In dropout, and Apex disc brake mount
- Compatible up to 29 x 2.1" MTB tires
- Breezer chromoly fork with braze-ons for a rack or extra waterbottle cages
- Tubeless-compatible wheelsets

bike frame with labeled dimensions

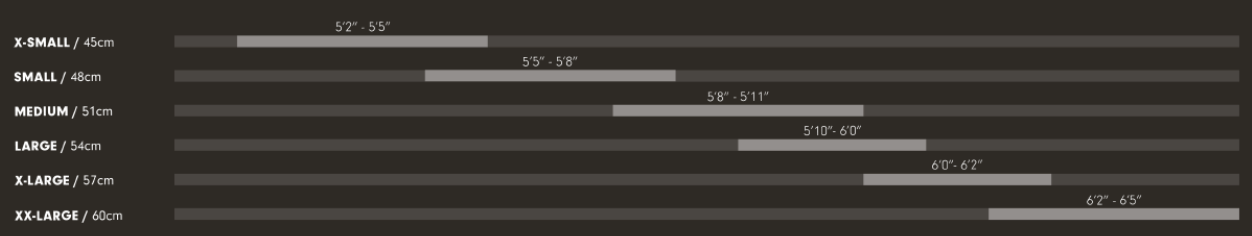

Bike Sizes:
A. Reach 417mm 421mm 421mm 422mm 435mm 448mm
B. Stack 568mm 568mm 601mm 615mm 615mm 633mm
C. Standover 775mm 788mm 818mm 839mm 853mm 872mm
D. Effective Top Tube 580mm 590mm 600mm 610mm 623mm 642mm
E. Head Tube Angle 69° 69° 69° 69° 69° 69°
F. Head Tube Length 120mm 120mm 155mm 170mm 170mm 190mm
G. Seat Tube Angle 74° 73.5° 73° 73° 73° 73°
H. Seat Tube Length 450mm 480mm 510mm 540mm 570mm 600mm
J. Bottom Bracket Drop 75mm 75mm 75mm 75mm 75mm 75mm
K. Fork Rake/Offset 51mm 51mm 51mm 51mm 51mm 51mm
M. Wheelbase 1099mm 1103mm 1110mm 1122mm 1136mm 1155mm
O. Chainstay Length 444mm 444mm 444mm 444mm 444mm 444mm
Handlebar Width 48cm 48cm 50cm 50cm 50cm 50cm
Stem Length 70mm 70mm 80mm 80mm 80mm 90mm
Crank Length 170mm 170mm 175mm 175mm 175mm 175mm


Frame Breezer butted chromoly steel, BSA threaded BB, Boost 148mm through-axle
Fork Chromoly disc, rack / fender & side bottle mounts, 110 x 15mm through-axle
Wheels WTB ST i25 TCS disc, 29"/700c tubeless, Formula sealed bearing hubs 148 x110 Boost, 14g SS spokes, 32H
Tires WTB Nineline TCS, 700 x 50c (29 x 2.0"), TCS Tubeless Ready, Lightweight Casing, Dual DNA Compound OR Good Year Peak Ultimate TL
Bottom Bracket FSA Mega Exo BSA stainless
Crankset FSA Comet Modular, 38T
Shifters SRAM APEX-1, 11-speed
Rear Derailleur SRAM APEX, long cage
Cassette/Freewheel SRAM PG-1130, 11-42T, 11-speed
Chain KMC X11
Brakes TRP HY/RD hydraulic caliper, 160mm rotors
Brake Levers SRAM APEX
Handlebars Breezer Big Bar, 6061 alloy, 31.8mm clamp, 46-50cm width, 12° flare
Tape/Grips Breezer black
Stem Breezer B-Road, 3D-forged 6061 stem body, +/-7°
Headset FSA 1 1/8" Semi-Integrated, 36° ACB-sealed, 6.5mm aluminum top cover
Seatpost Breezer setback, 6061 alloy, 30.9mm diameter
Saddle WTB Volt Comp 142x265, steel rail
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Satin Black / 45cm 785749204550 40211151645
Satin Black / 48cm 785749204567 40211151648
Satin Black / 51cm 785749204574 40211151651
Satin Black / 54cm 785749204581 40211151654
Satin Black / 57cm 785749204598 40211151657
Satin Black / 60cm 785749204604 40211151660
